CTS 100kwh 200kwh 300kwh 500kwh BESS solar lifepo4 battery energy storage system for industry solar energy storage

Brand Name : CTS

Model Number : CTS1MWH-LFP

Certification : UN38.3

Place of Origin : China

MOQ : 1

Price : $25000/unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100unit/month

Delivery Time : 15-30days

Packaging Details : Lifepo4 battery system in Cardboard or wooden box

Battery type : Lifepo4

Application : Solar energy storage system

Inverter type : Grid Hybrid Solar inverter

System warranty : 10 years

Solar output power : 15kw to 60kw,customized

AC output capacity : 30kw to 100kw ,customized

Nominal AC voltage : Three Phase 400v,split phase optional

DC BUSBAR voltage : 200V to 600V ,customized

Contact Now

CTS 100kwh 200kwh 300kwh 500kwh BESS solar lifepo4 battery energy storage system for industry solar energy storage

This is an intelligent and modular power supply equipment integrating lithium battery and MPCS. According to different application scenarios, lithium battery, bidirectional DC / AC converter, bidirectional DC / DC converter, Static switch and Power management system can be arbitrarily combined to realize grid connected power supply, off grid power supply and off grid uninterrupted power supply power supply, static reactive power compensation, harmonic suppression and other functions. The system can have access to new energy, power grid, diesel generator and to rreasonable configuration, scientific utilization, to provide users with green, environmental protection, noise free, high reliability and high security power services.

CTS 100kwh 200kwh 300kwh 500kwh BESS solar lifepo4 battery energy storage system for industry solar energy storage

Specification

what is high voltage battery system?

For the lithium iron phosphate battery cells, the single cell voltage is always 3.2V, all voltage, current, power (kW) and energy(kwh) applications are based on this.2.High voltage lithium battery system usually refers to the battery system voltage is greater than or equal to 96V, for example,192V 50Ah battery system is 1P60S (60 cells series connected) cell connection based on 50Ah single cell.

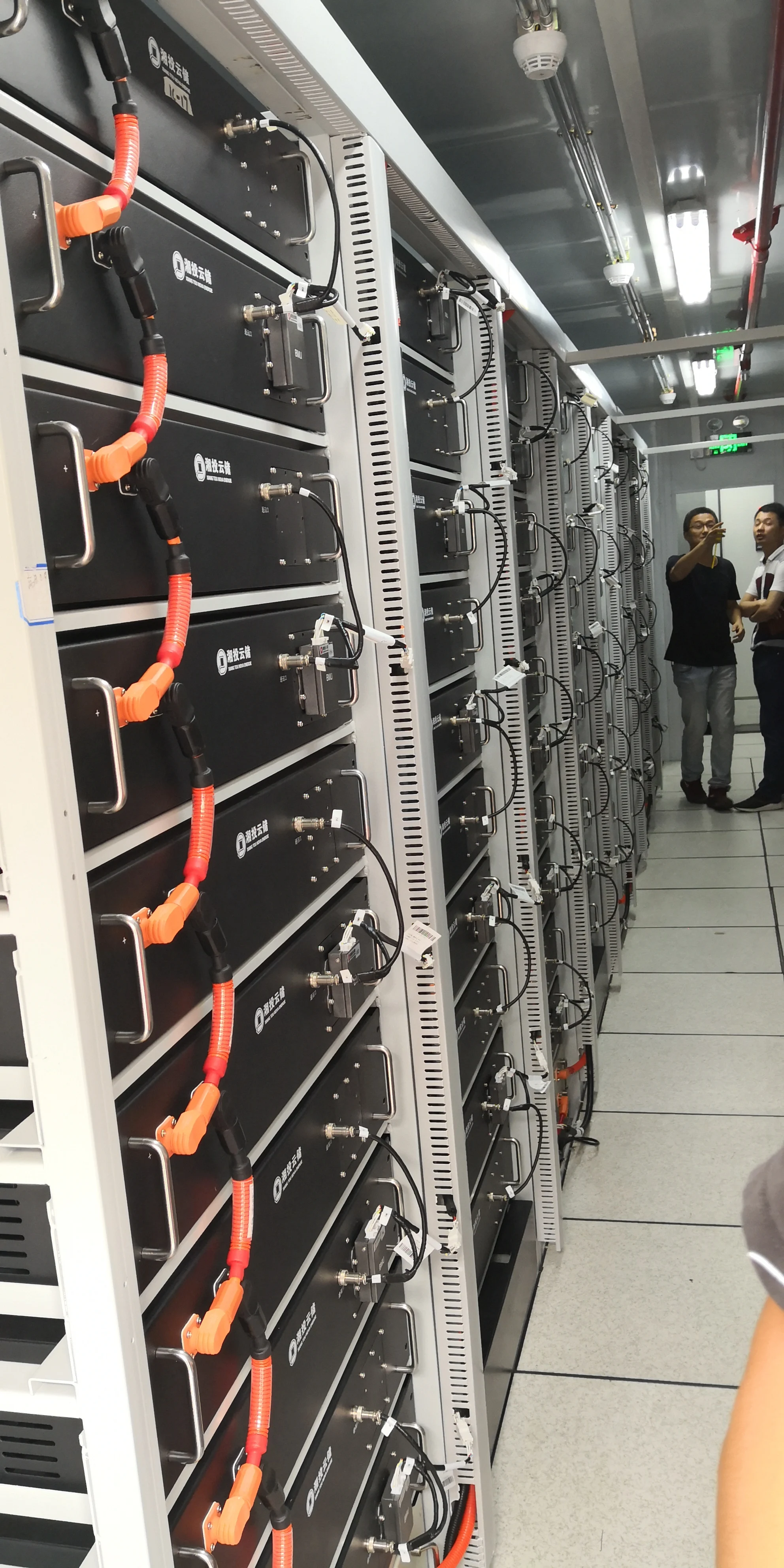

For high voltage, in the single-cluster battery system, the batteries are always connected in series to achieve a higher voltage.Moreover,there is a high voltage DC main unit is needed to manage this high voltage cluster.

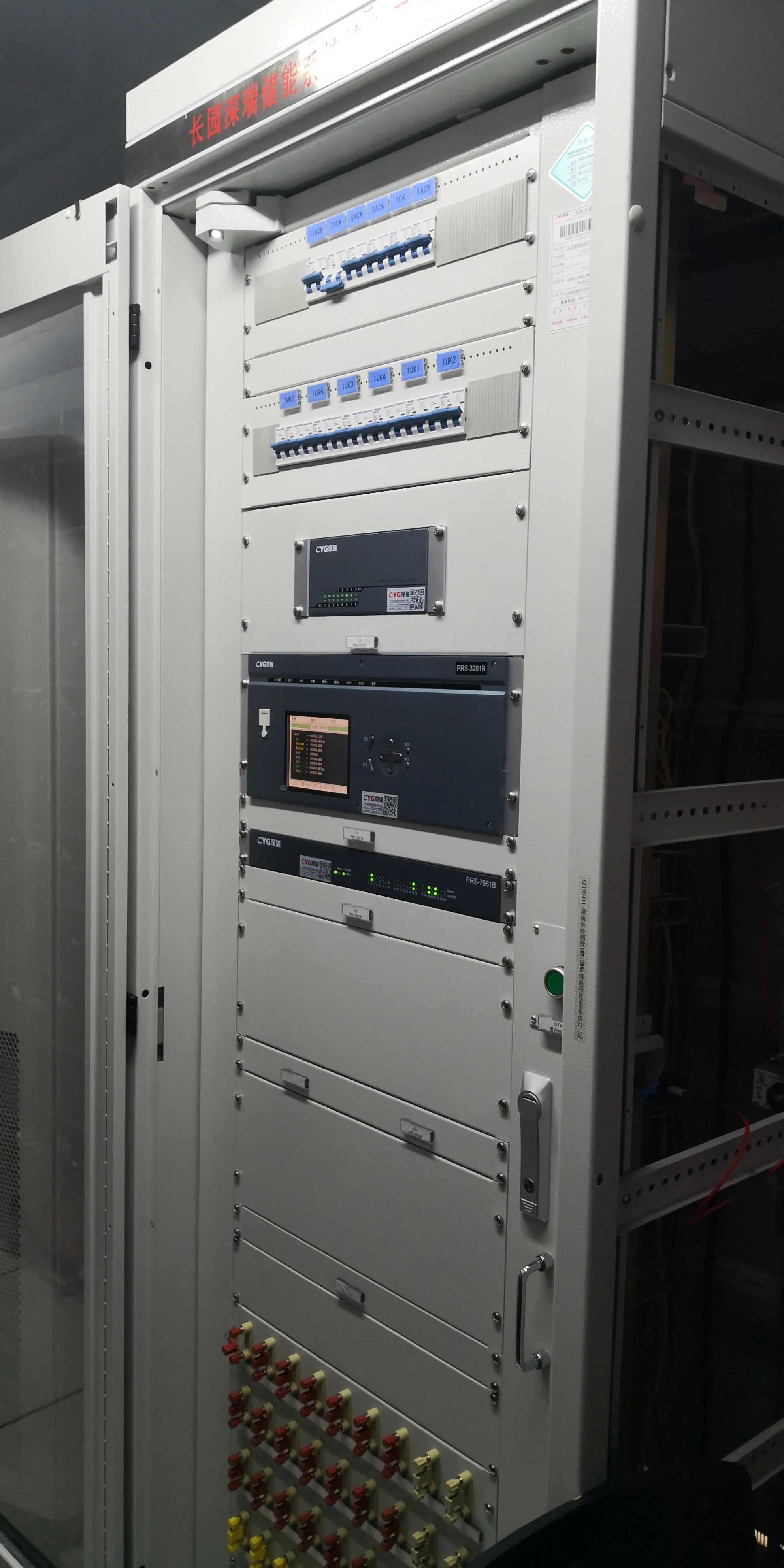

The main function of the high voltage DC main unit is to manage all the BMU units of this cluster through the master BMS, meanwhile to provide start-stop, protection and other functions for this cluster

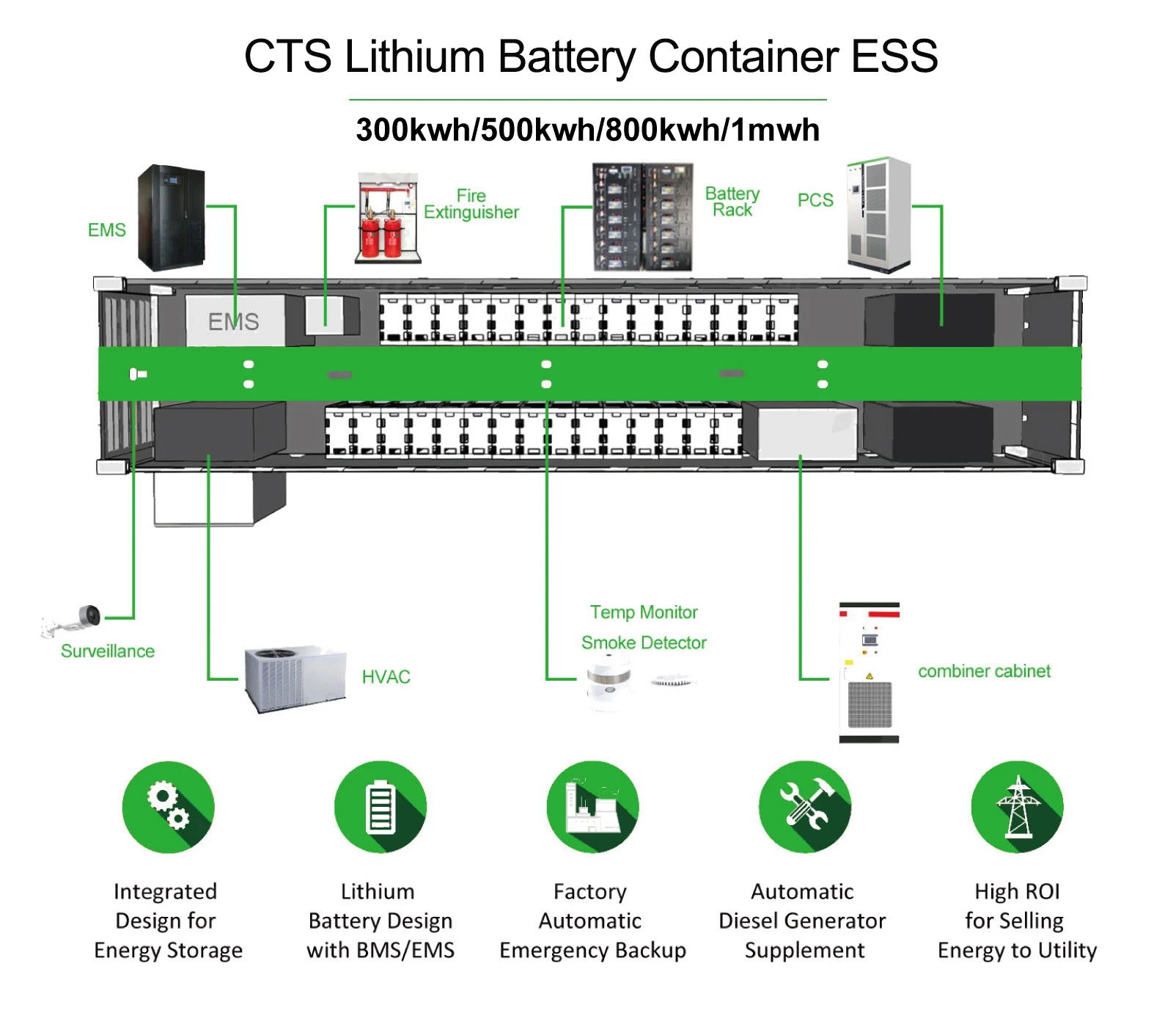

CTS Lithium Battery Energy Storage System Container
Model	CTS300KWH	CTS500KWH	CTS800KWH	CTS1MW
Solar Panel	300KW	500KW	800KW	1MW
PV Combiner Box	Cutomized	Customized	Customized	Customized
Hybrid Solar Inverter	300KW PCS	500KW PCS	800KW PCS	1MW PCS
Utility Voltage Range	380V/360V-440Vac; 480V/432V - 528Vac 45-55/55-65Hz
Solar Battery Packs	Lithium Battery Packs BMU/CBMS/GBMS/EMS Protection;
Battery Racks	2~3 Racks	3~4 Racks	4~6 Racks	5~8 Racks
Data Monitor	Ethernet/Wifi Monitor/4G Terminal Monitor
PV Cable	4/6mm2	4/6mm2	4/6mm2	4/6mm2
Installation Brackets	Aluminium Alloy, Stainless Steel, Hot-dip Galvanized Steel,Ground Screw Mounting, Adjustable Brackets, Solar Tracker

Details and features

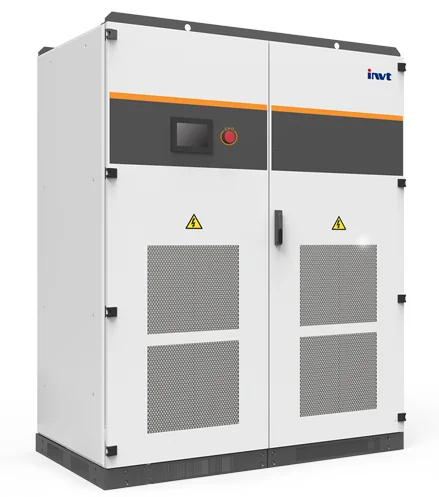

Hybrid Inverter

380-480V 50/60Hz. EU / USA StandardAutomatic Switch to charge loads,batteries or from Grid backup with priority setting function;
 Built-in Transformer

 WIFI GPRS Monitoring

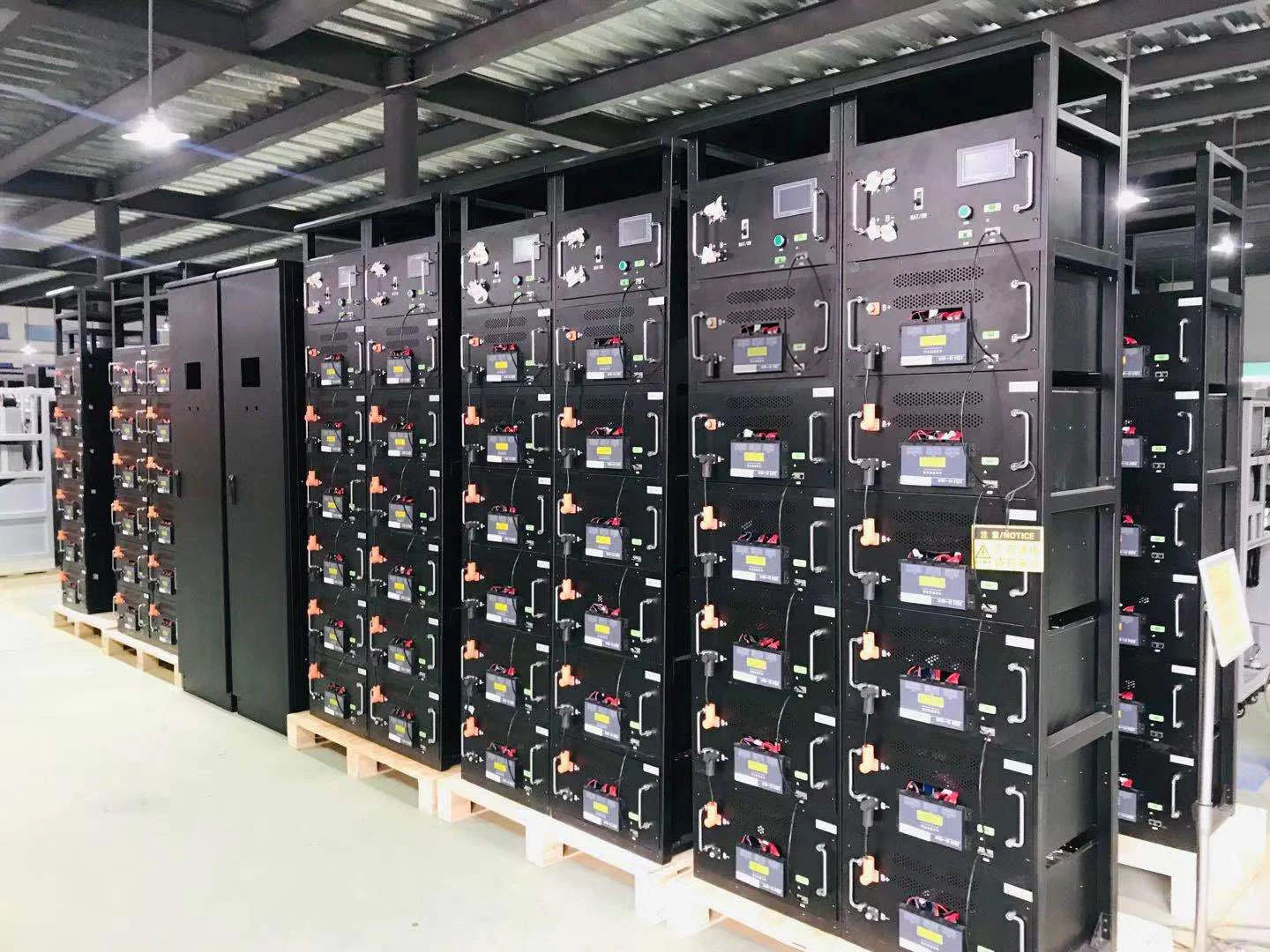

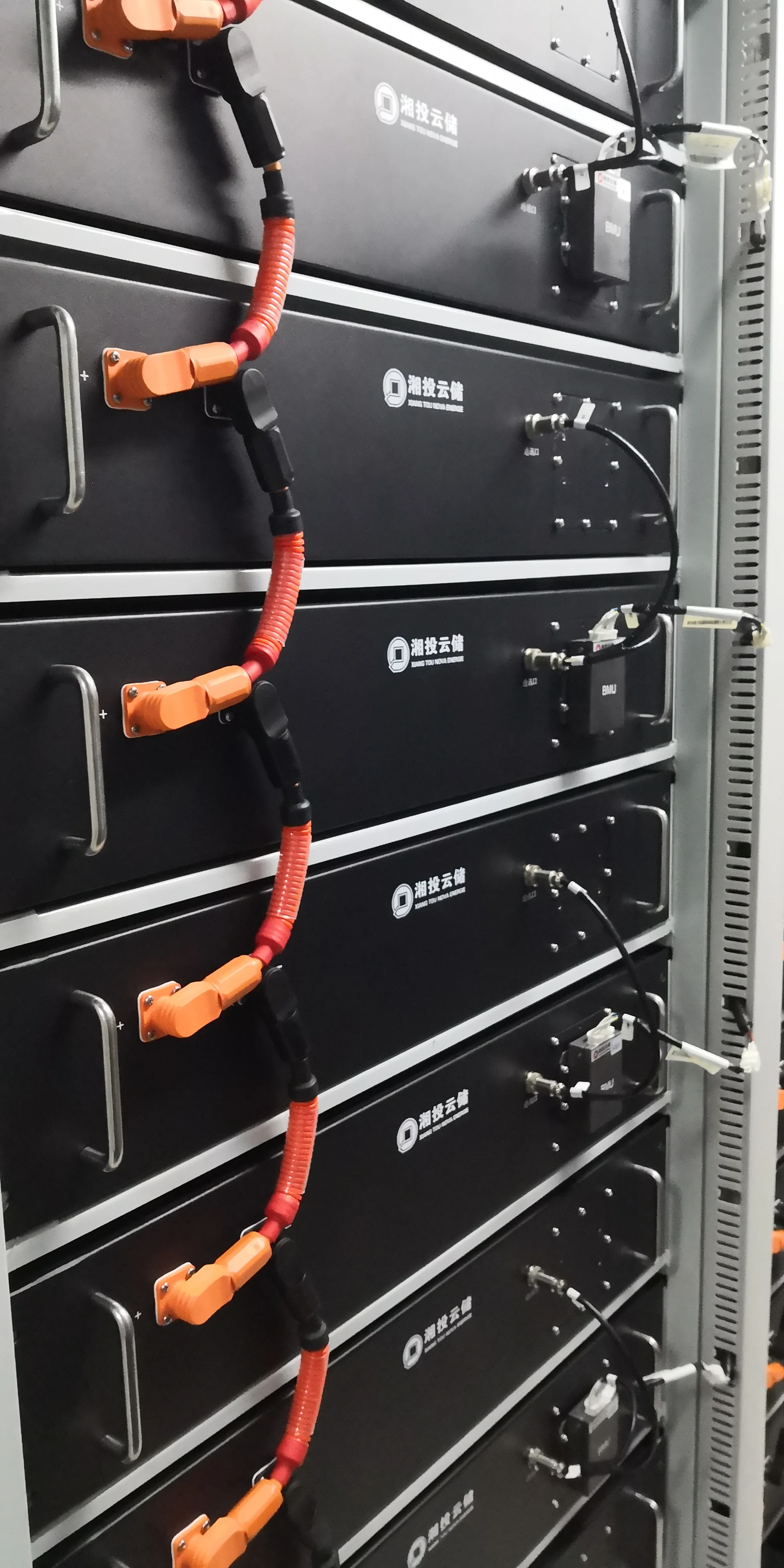

Lithium battery pack

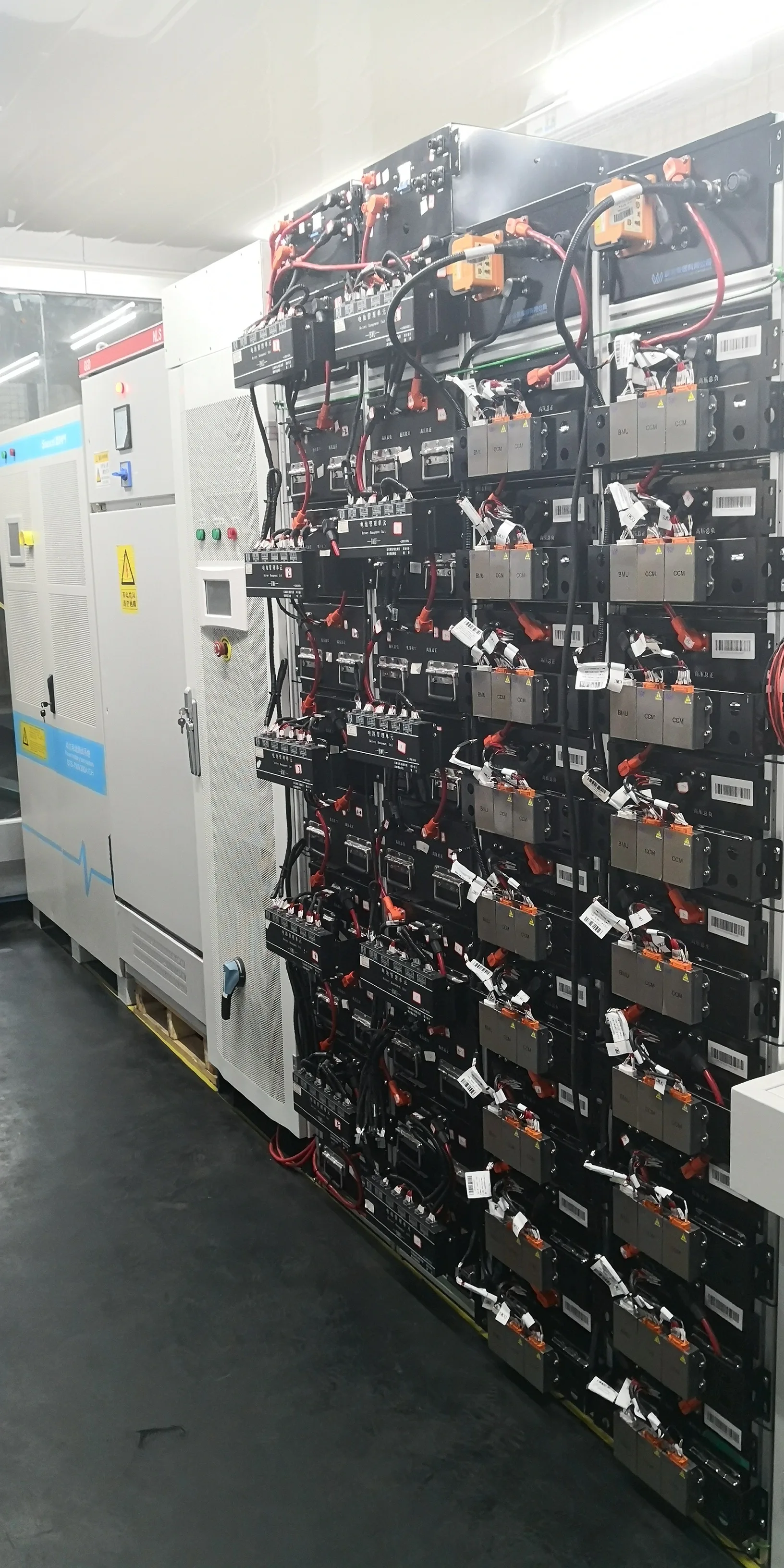

The battery module consists of a battery rack and CBMS.
*LFP single battery ,long life,safety,wide temperature range
*High energy density,small size ,light weight ,no pollution;
*Multi-standard modules customized 5-12kwh,can be configured into a wide voltage 50-250kwh battery cluster
*Adopt CBMS-BMU design to protect votage ,current and temperature
*Integrated communication interface,CAN2.0 and Modbus
*15-year design life ,stable performance ,maintenance-free

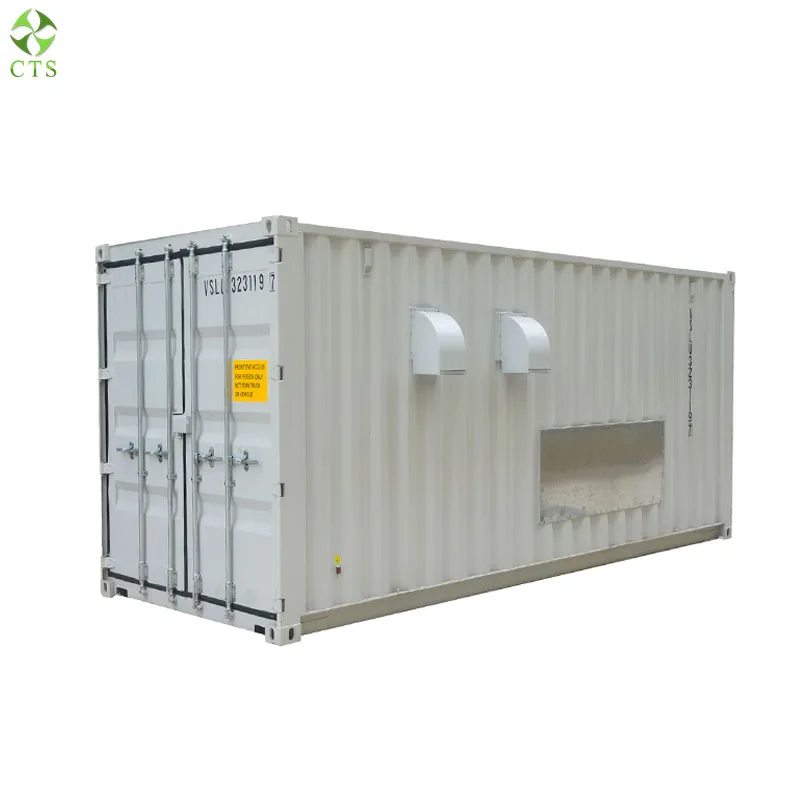

20H/40H Outdoor Container

The solar container includes lighting ,access control,fire protection,and air conditioning .

20H can hold 100kwh battery and other equipment.

Can be placed indoors or outdoors,with heat insulation function

Advantages:
Various working modes can be set flexibly
Flexible Battery Type(li-ion,lead-acid)
PV controller can be expanded to facilitate flexible
CAN and RS485 communication interface,modbus protocol
Integrated EMS function
Strong load adaptability
Perfect protection function to protect inverters and batteries
