CTS Battery Residential Energy Storage Systems 400KWh 520kWH 800kWh ESS Lifepo4 Battery With all A-level New Cells
1 ╣CTS Industrial energy storage

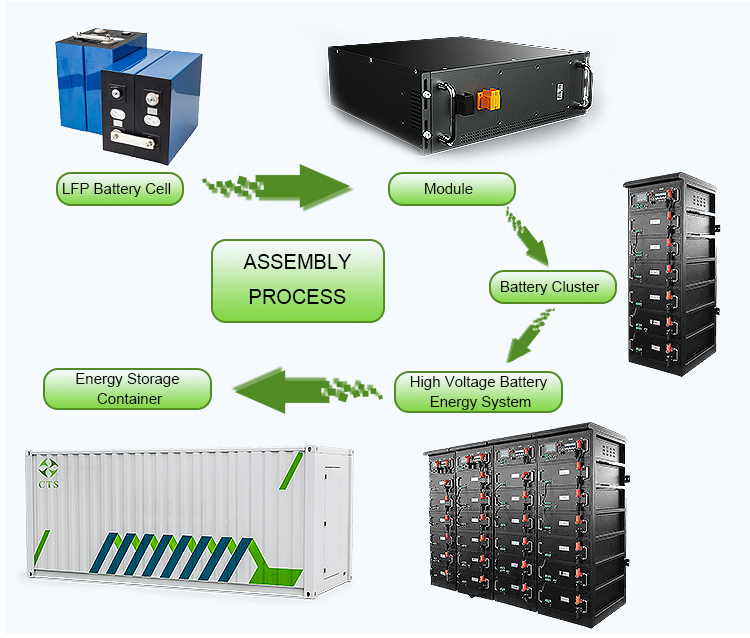

2,╣INNER STRUCTURE
LiFePO4 lithium battery
►Long-cycle life (6000 cycles 80%DOD) ►High specific energy
►High energy conversion efficiency (Maxium 99%) ►Easy installation
►Multigroup parallel connection ►Wide-range in application
3,╣SYSTEM Features
High security
►Professional fire density calculation, alarm logic and wiring installation
►Full automatic detection, power-off hold, fire control and equipment linkage control, temperature detection and smoke detection
►The cabinet adopts heat insulation design
►30 minutes fire resistance
►Support white surface, or exclusive customization of patterns
►Class a fire escape door
►Internal 0.5 second instant unlocking
Battery management system (BMS)
►Precise voltage detection ►Precise current detection ►Precise temperature detection
►Precise soc evaluation ►Battery protection ►Active balance
► The high-pressure energy storage BMS system is usually divided into a 3-4 layer structure
► BMU manages a single 48V module ►CBMS manages 12~16 BMUs ►GBMU manages 2~16 BMUs
Strong compatibility
Seamless docking with UPS, photovoltaic power generation and other main equipment; communication interface forms, CAN / RS 485 and so on can be customized according to customer needs, convenient system remote monitoring and flexible use.
4,╣Specifications
| Model | CTS-C&I-230 | CTS-C&I-215 |
| Product Category | AC Outdoor Liquid-cooling Battery System | AC Outdoor Liquid-cooling Battery System |
| Rated Energy | 260kWh@0.5C | 215kWh@0.5C |
| Rated Power | 100 kW | 100 kW |
| Rated Output Voltage | 380 Va.c. | 380 Va.c. |
| Cell Capacity | 280Ah | 280 Ah |
| Configuration | 1P 260S | 1P 240S |
| Discharge Current | 140 A | 140 A |
| Charging Current | 140 A | 140 A |
| Charging Temperature | 0~50℃ | 0~45℃ |
| Discharging Temperature | -20~50℃ | -20~50℃ |
| Cooling Method | Liquid Cooling | Liquid Cooling |
| Protection Level | IP54 | IP54 |
| Product Weight | ≈2725 Kg | ≈2550 Kg |
| Dimensions | W1300×D1310×H2265 mm | W1300×D1310×H2265 mm |
| Applications | Utility-scale, C&I | Utility-scale, C&I |
5,╣Application scenario
PV charging station
►The solar panel charges the battery;
►The power grid charges the battery;
►Battery supplies power to the load and charging pile;
►Charging piles charge the car;
►The solar panel generates electricity and sells it to the grid.
Solar and wind energy storage system
►Complementary multiple energies and balanced power supply
►Improving the stability and economic efficiency of on-grid power generation
►Improving the grid regulation
Frequency modulation of thermal power plant
►Effectively improve the frequency and amplitude stability of power grid
►Increase the revenue
►High rate charging and discharging
►Reduce grid impact and improve grid stability
►Quick dynamic response of energy storage system
►Improve quality of electric energy, and assisting new energy grid connection
6,╣Physical product
Customizae the overall plan according to customer equipment specifications
Multiple standards meet different international needs
Supporting the National Fire Administration's acceptance and certification is an important condition for safety assurance
7,╣Company Profile
Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.
We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
|
|
